Introduction

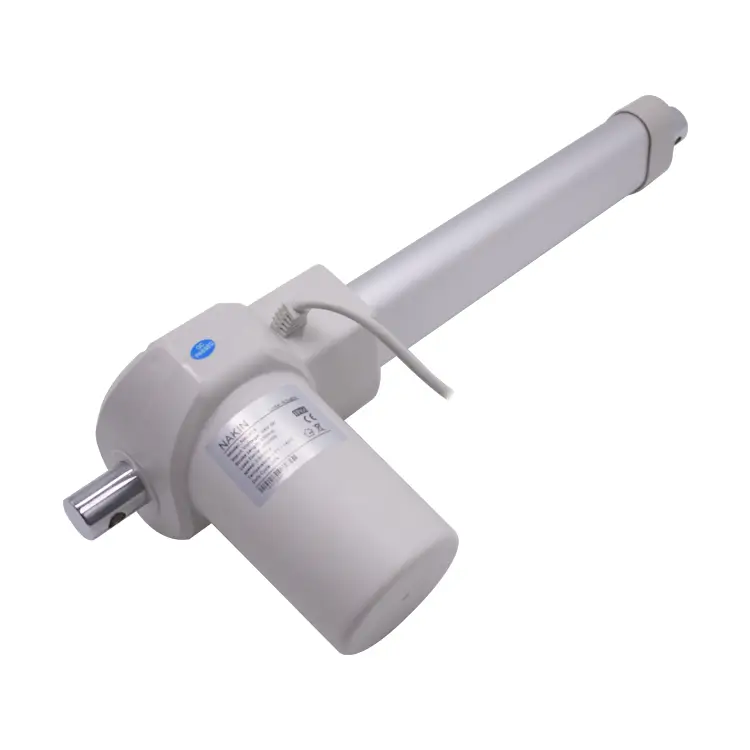

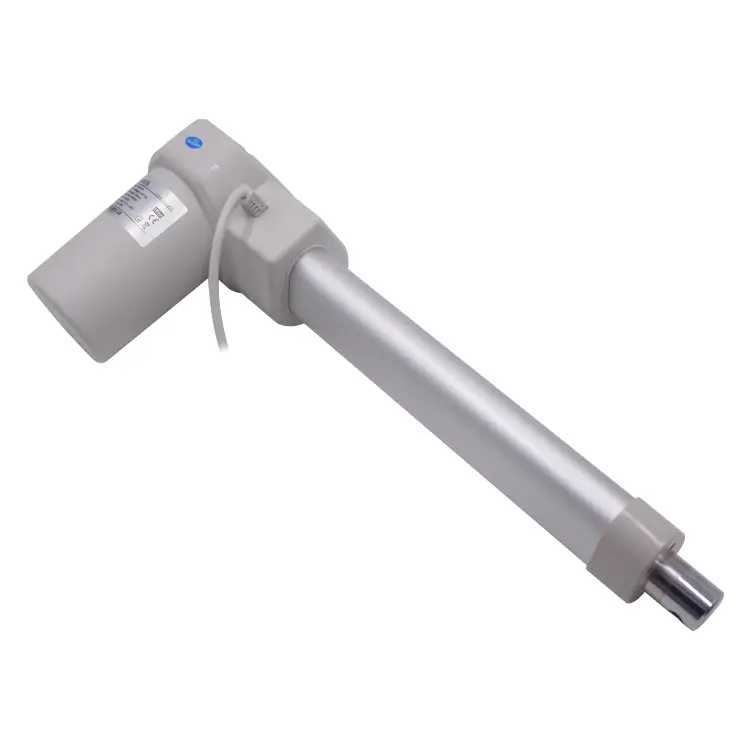

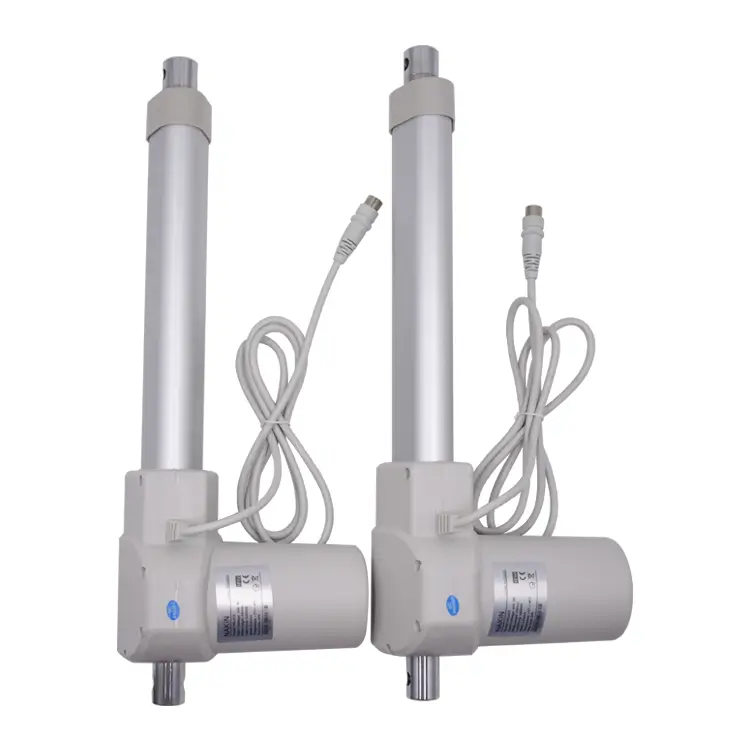

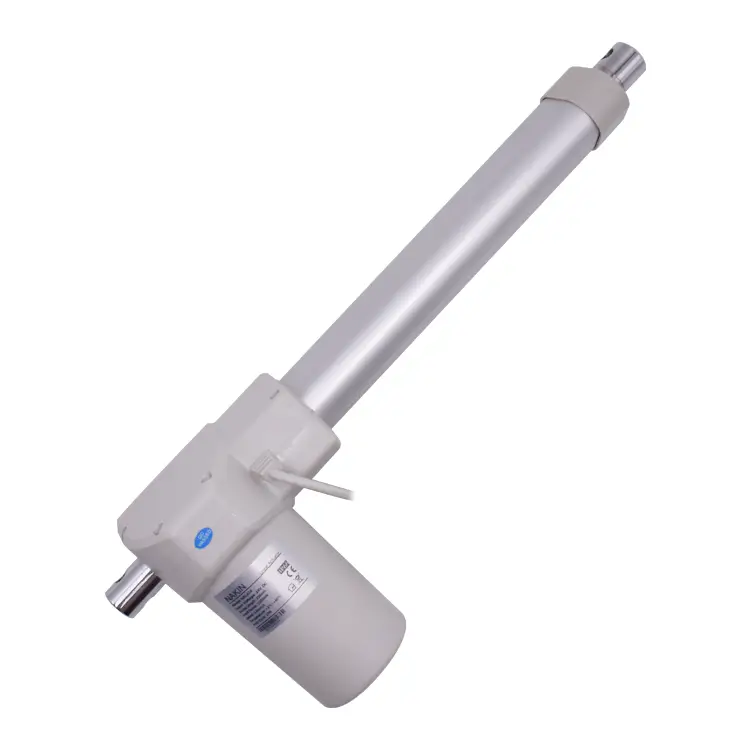

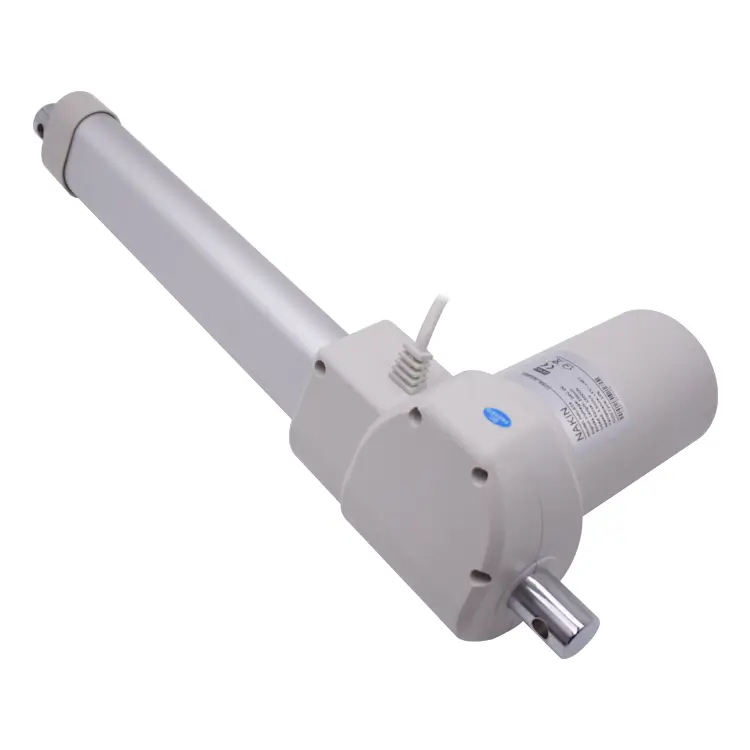

NKLA19 heavy load linear actuator is able to lift medium to high force and is IP-66 rated. It is completely impermeable to dust and can withstand high water pressure. The model is very popular for jobs and industries in potentially harsh environments such as marine, automotive, manufacturing, and home automation as well as industrial equipment and hobby design.
Features
1、24V DC permanent magnet motor
2、Thrust up to 10000 N in push and up to 10000 N in pull
3、Color: gray
4、Standard protection class: IP66
5、Max push 10000N, Manual operation in case of emergency
6、Used for patient lift
7、The average noise level is lower than 50dB (ambient noise is less than 40dB).
8、Built-in electronic limit switches
| Dynamic Load Push(N) | ＞10000 |
| Static Load Push*（N） | ＞10000 |
| Input（VDC） | 24 |
| Speed at Full Load(mm/s) | 3.5 |
| Stroke Length（mm） | ≤350 |
| Colour | Grey |
| Limit Switch | Build-in |
| Duty Cycle | 10%. max 2min. continuous use |
| IP Grade | IP66 |
| Operating Temperature | +5℃~ +40℃ |
| Optional Features | Hall sensor option |
| Manual operation | |
| Only push option |

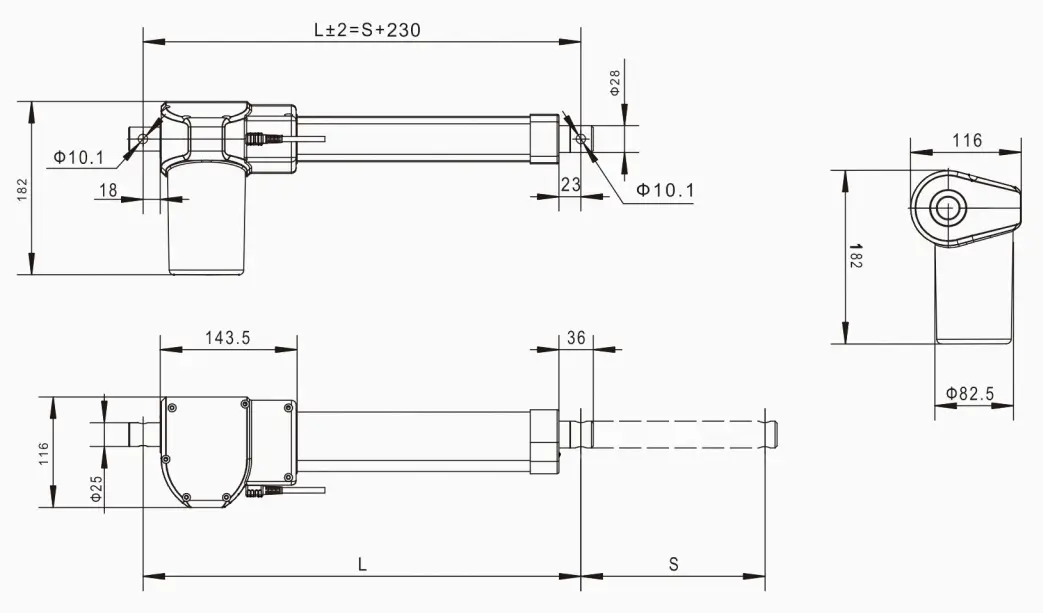

NKLA19 Dimensions
