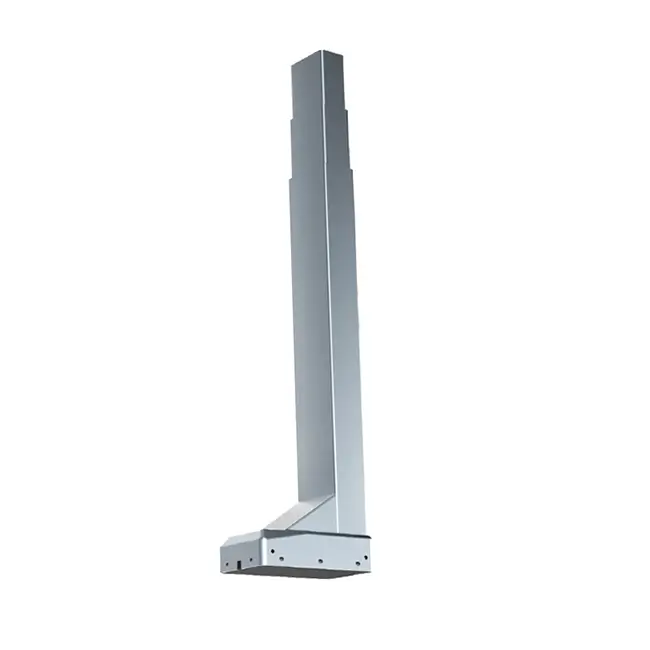

800n single electric lifting column
electric height adjustable table leg lift column
Introduction
lifting column is designed for a wide range of workstation applications, like computer workstations, work benches, assembly desks or kitchens . With the Hall sensors built-in, it can be operated either as single column or several columns in synchronized movement by choosing a control box with micro-processor .
Features
* Rectangle lifting column with 3mm optimized motor housing design and for extra strength and stability
* The tube is no hole design
* Max. load capacity is 800N per column
* Self Locking：1200N
* Standard installation length: 560mm
* Standard stroke length: 650mm
* Column dimensions: outer tube: 80x50mm; middle tube:75x45mm; inner tube:70x40mm
* Motor housing dimension: 190x96x48mm
Technical specifications
| Type | Rated
load
|
Self locking
|
Current at rated Load
|
Max speed
|
Duty cycle
|
Stroke length
|
Minimum height
|
Max height
|
| NKLC9-3-R | 800N | 1200N | 5A | 32mm/s | 10% | 650mm | 560mm | 1210mm |

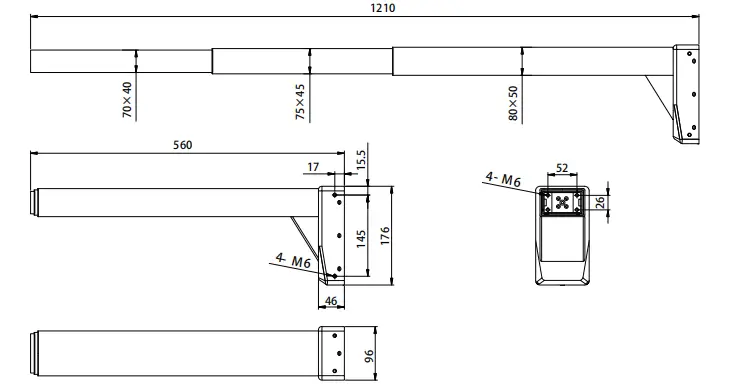

NKLC9-3-r Dimensions
