electric height adjustable table leg lift column
6000n electric lifting column for dental chair
Introduction
Lifting columns are manufactured with light-weight aluminum or durable steel, our lifting columns offer superb stability, low-noise, and low-energy height adjustment. These adjustable table legs are resistant to dust and moisture while requiring no long-term maintenance as opposed to hydraulic and pneumatic alternatives.
Electric lifting columns are widely used in households, medical and Smart office other fields. The tube body of the existing electric lifting columns generally consists of an inner tube, a middle tube sleeved outside the inner tube, and an outer tube sleeved outside the middle tube. Both the outer tube and the outer tube can slide axially along the middle tube .
Features
- 2mm thickness round tube and 3mm optimized motor housing design for extra strength and stability
- The tube is no hole design
- Max. load capacity is 800N per column.
- Fit with series control boxes to realize stable speed 35mm/s
- Low noise level ≤50dB
- Max. Bending moment:150N.m
- Standard installation length: 560mm
- Standard stroke length: 650mm
- Column dimensions: outer tube: 70x70mm; middle tube: 65x65mm, inner tube: 60x60mm
- Motor housing dimension: 190x96x48mm
- Motor: design high power motor
Technical specifications
| Type | Rated
load
|
Self locking
|
Current at rated Load
|
Max speed
|
Duty cycle
|
Stroke length
|
Minimum height
|
Max height
|
| NKLC13-3-S | 800N | 1200N | 5A | 32mm/s | 10% | 650mm | 560mm | 1210mm |

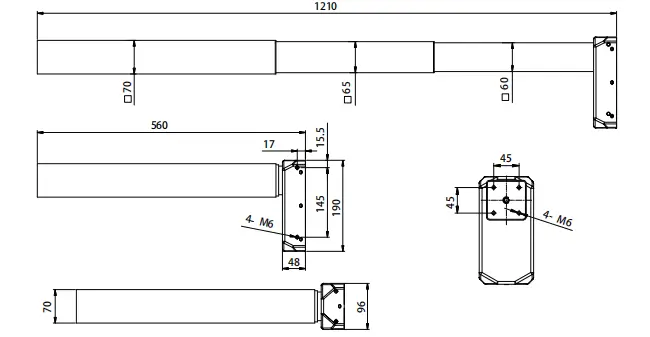

NKLC13-3-S Dimensions
