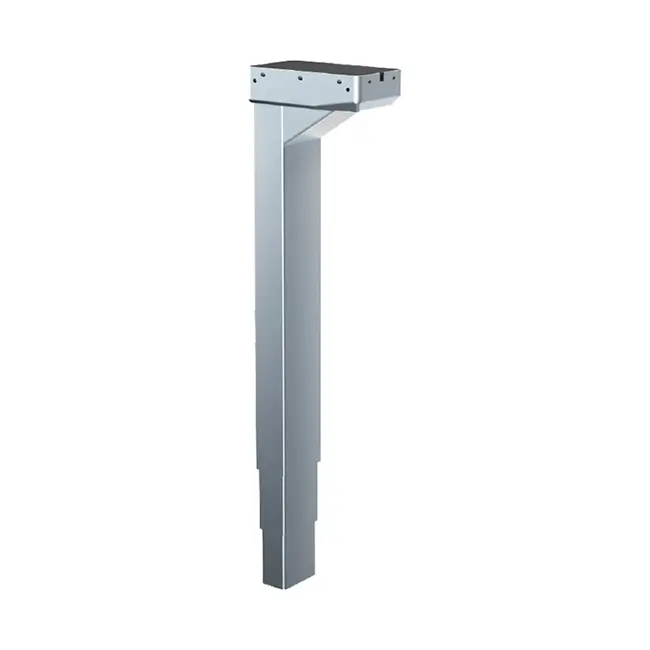

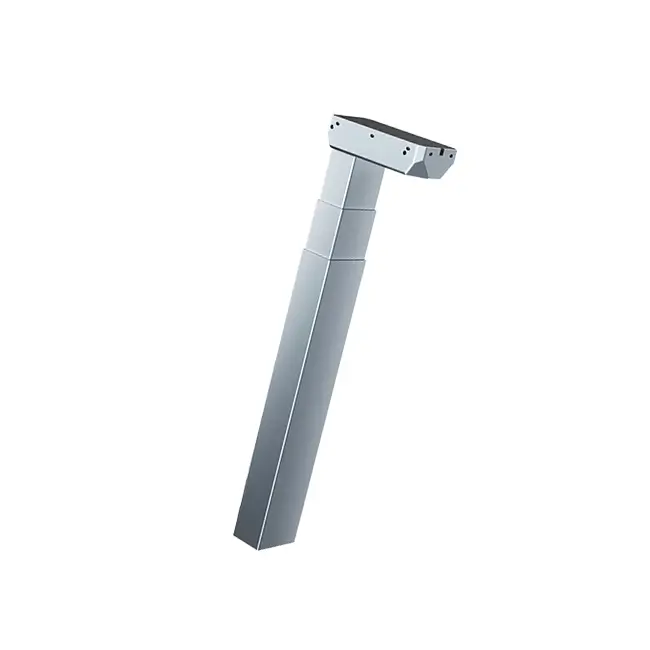

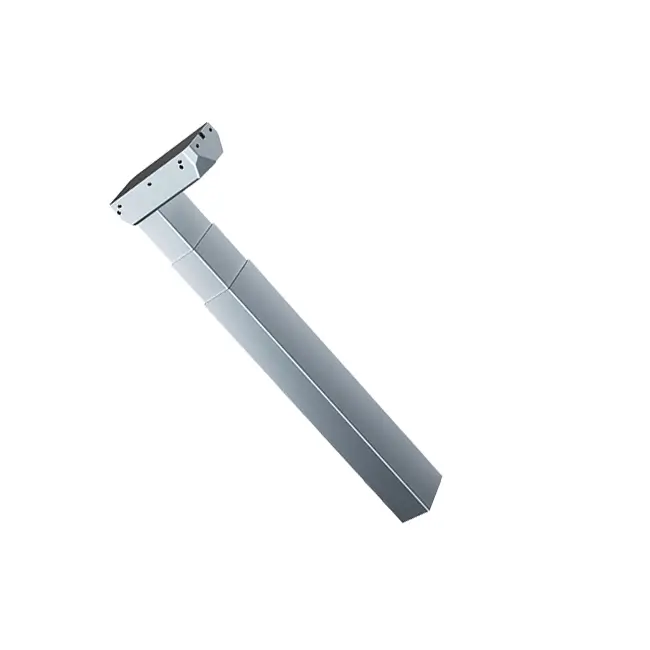

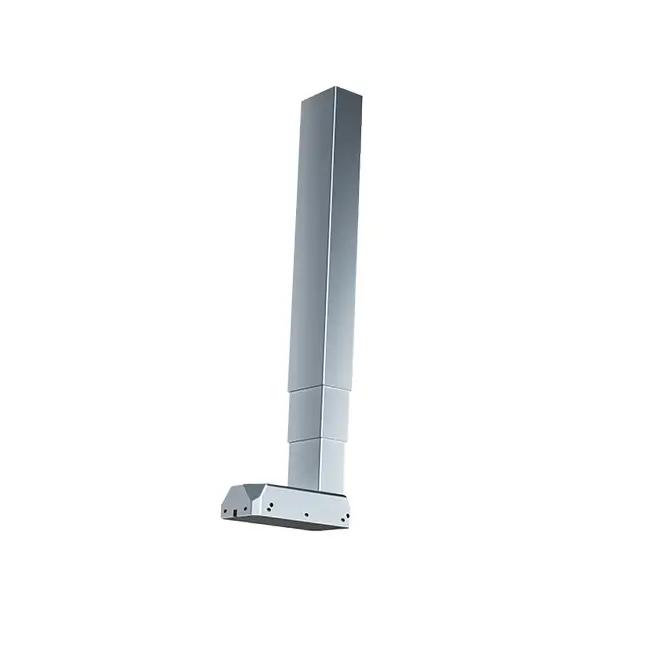

single column lift for height adjustable table
electric lifting colulmn for office computer desk
Introduction
Lifting columns are manufactured with light-weight aluminum or durable steel, our lifting columns offer superb stability, low-noise, and low-energy height adjustment. These adjustable table legs are resistant to dust and moisture while requiring no long-term maintenance as opposed to hydraulic and pneumatic alternatives.
Features
1.With 3mm optimized motor housing design for extra strength and stability
2.The tube is no hole design
3.Max. load capacity is 800N per column.
4.Fit with series control boxes to realize stable speed 35mm/s
5.Low noise level ≤50dB
6. Standard installation length: 560mm
7. Standard stroke length: 650mm
8.Columndimensions: outer tube: 90x60mm; middle tube:85x55mm; inner tube:80x50mm
9. Motor housing dimension: 190x96x48mm
10. Motor: design high power motor
11. Hall sensor enabling parallel drive
Technical specifications
| Type | Rated
load
|
Self locking
|
Current at rated Load
|
Max speed
|
Duty cycle
|
Stroke length
|
Minimum height
|
Max height
|
| NKLC10-3-S | 800N | 1200N | 5A | 32mm/s | 10% | 650mm | 560mm | 1210mm |

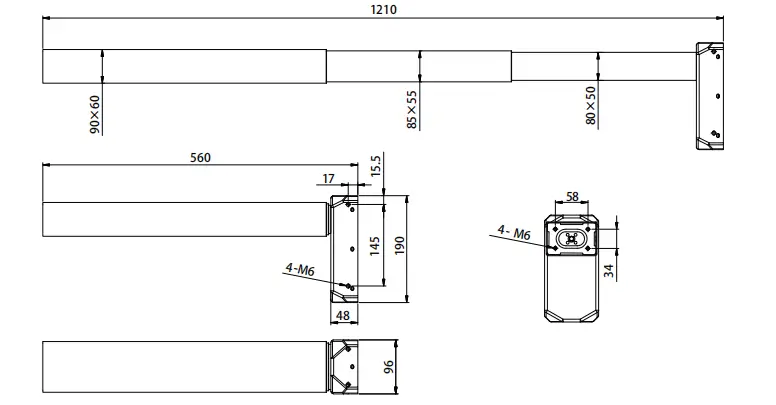

NKLC10-3-S Dimensions
