Introduction

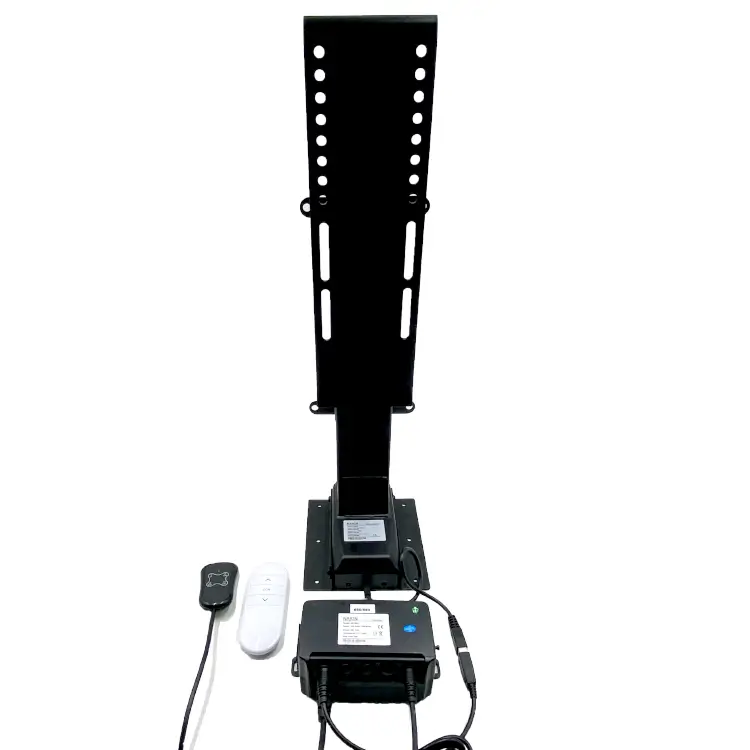

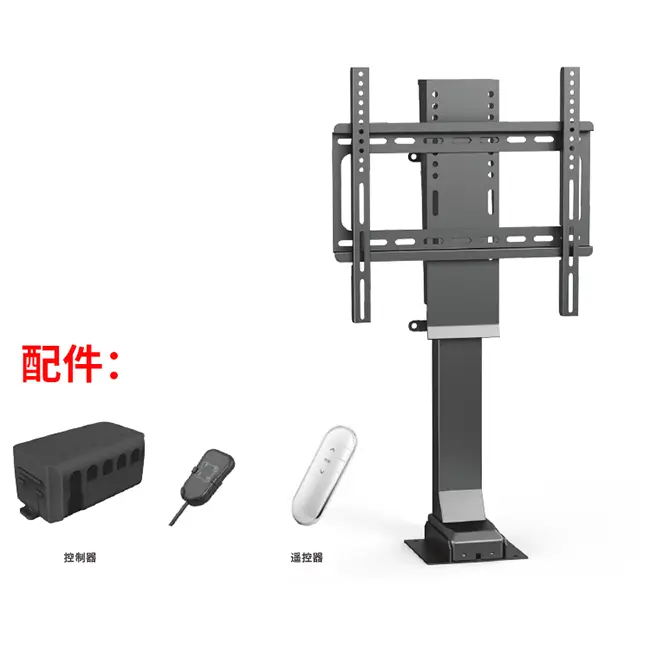

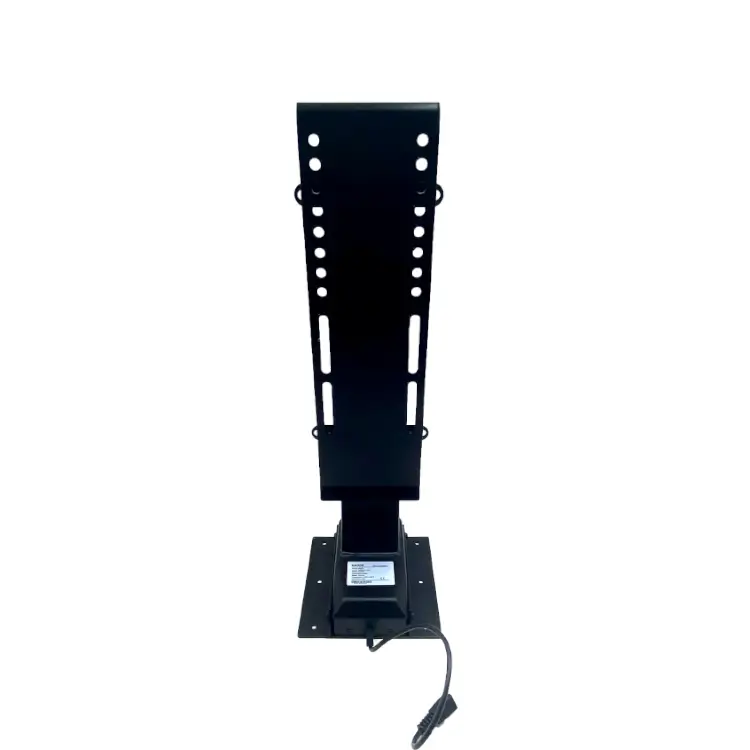

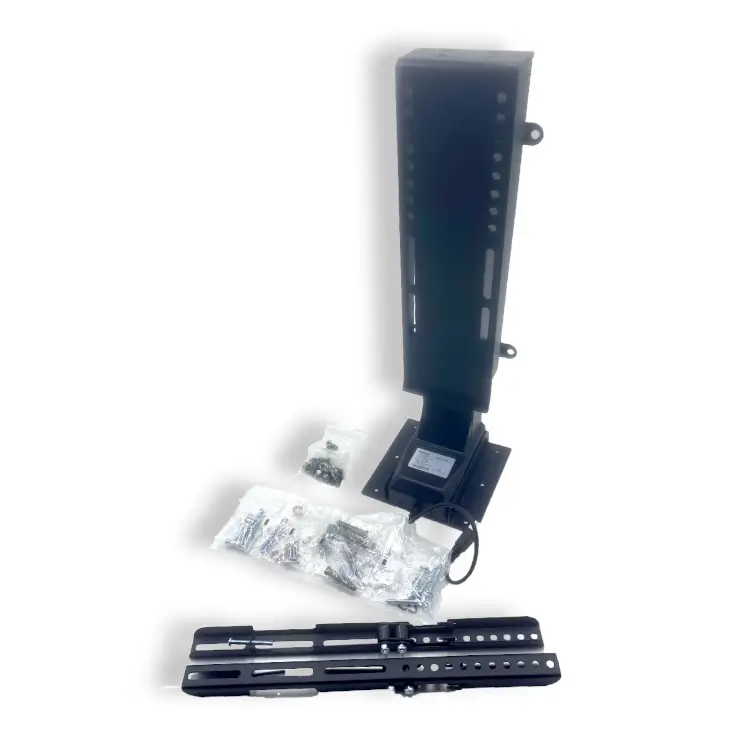

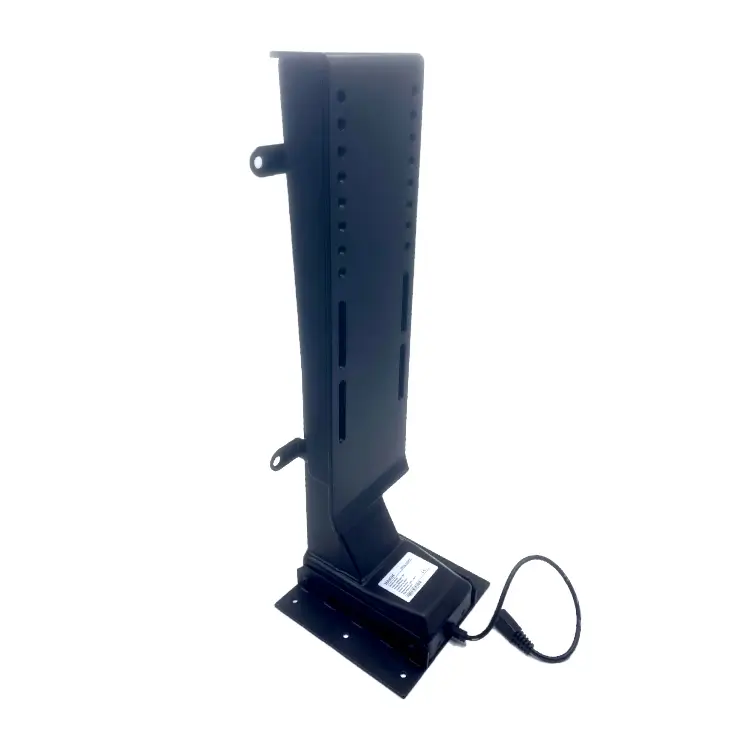

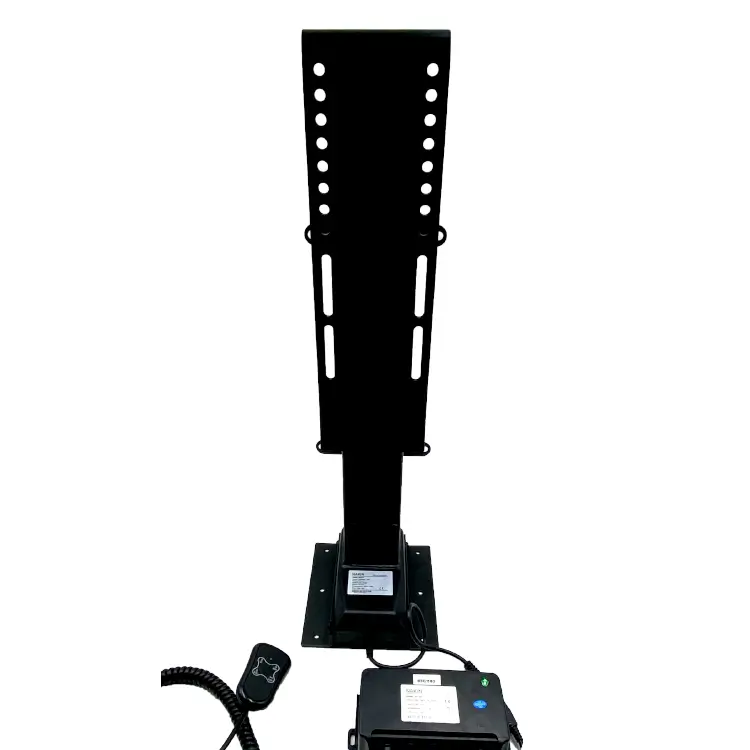

The TV lifting base serves the purpose of elevating the TV. It can be embedded in bookcases, filing cabinets, and ceilings. On the top of that, TV lifting is user friendly and with the great characteristics of stable and reliable.
Additionally, it incorporates automatic doors and anti-pinch features for added safety. Moreover, the product boasts an aesthetically pleasing design.
Features
vertical TV lift kit controlled easily via wireless RF remote
Quick & easy DIY installationQuiet operationSpace-saving designEasy compatibility
In applications ranging from 25″ to 60″ TV
Can set different height and select running
| Type | NKLC6-650 | NKLC6-1000 |
| Max load capacity(N) | 600 | |
| Static load(N) | 700 | |
| Input voltage(VAC) | 110-240 | |
| Speed(mm/s) | 25 | |
| Min height(mm) | 570 | 810 |
| Max height(mm) | 1220 | 1810 |
| Color | Black | |
| Duty cycle | 2 minutes continues use followed by 18 minutes not in use | |
| IP grade | IP20 | |
| Ambient temperature | +5℃〜+40℃ | |
| Packaging (mm) | 670*310*250 |
900*310*235 |

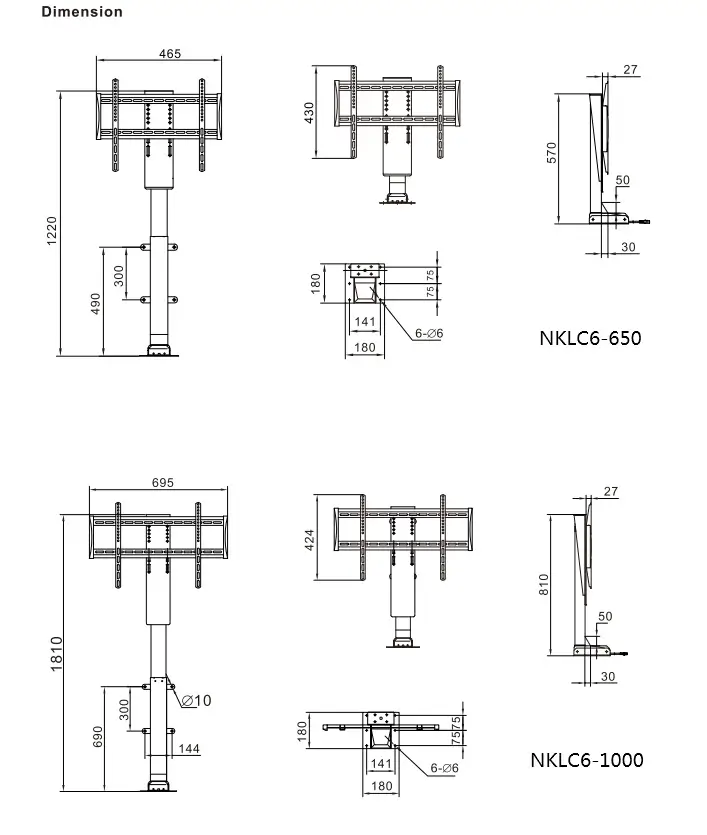

NKLC6 Dimensions
