Introduction

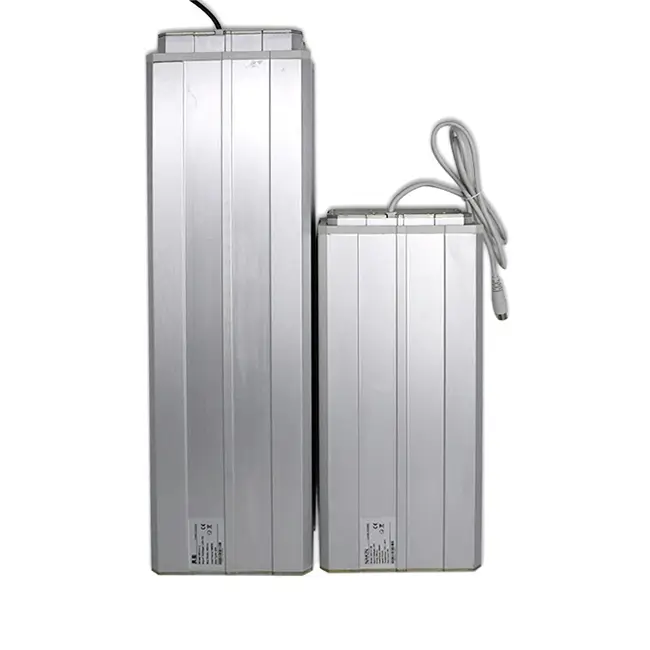

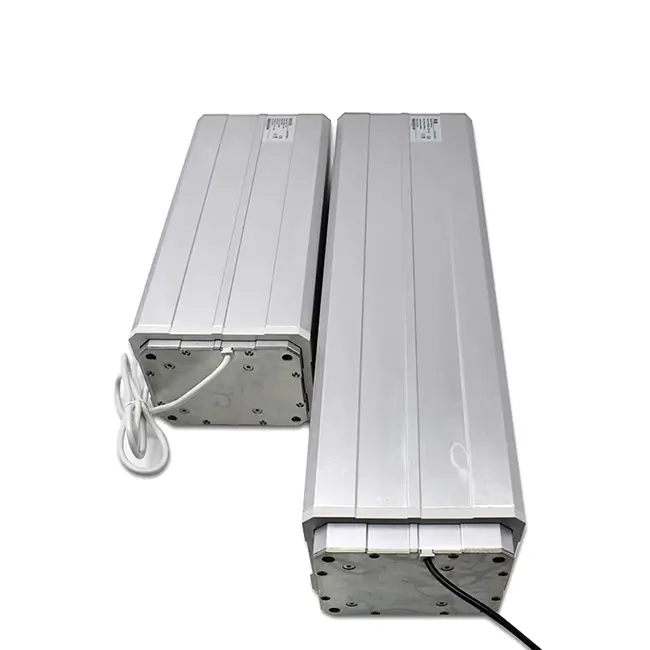

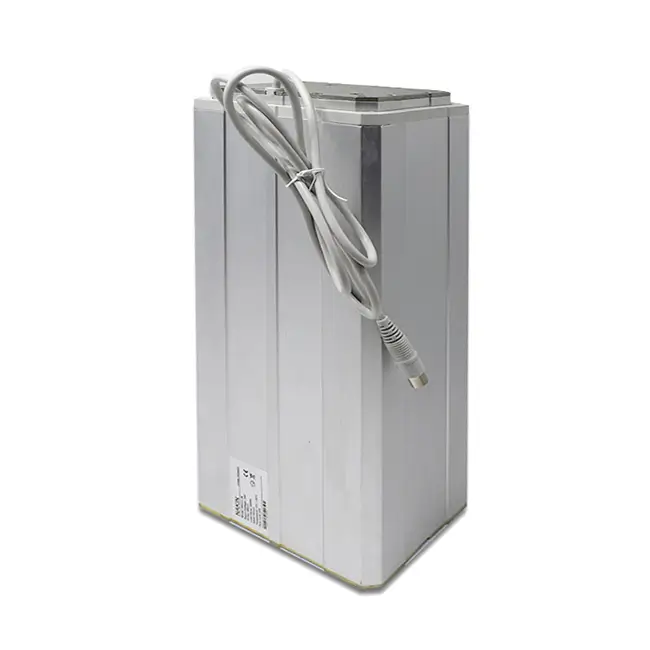

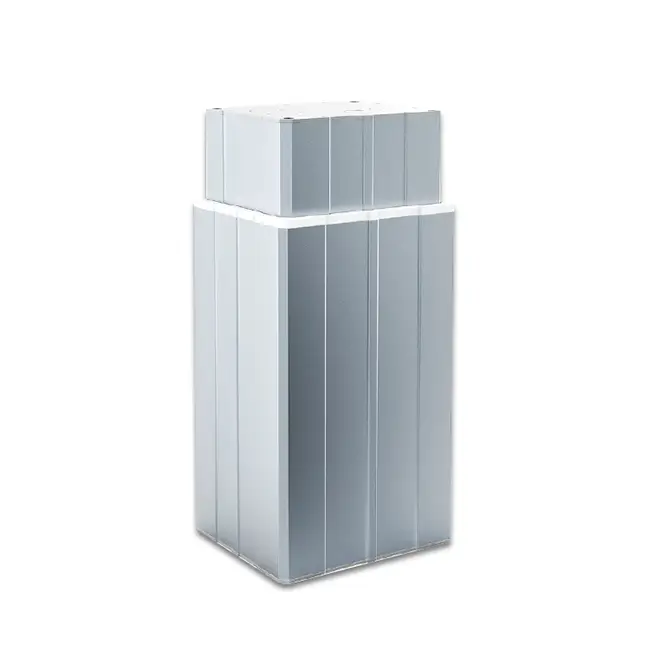

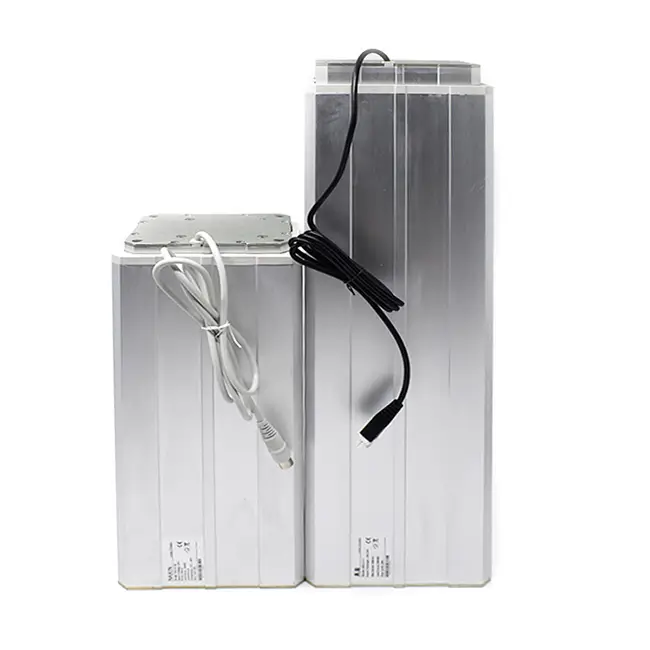

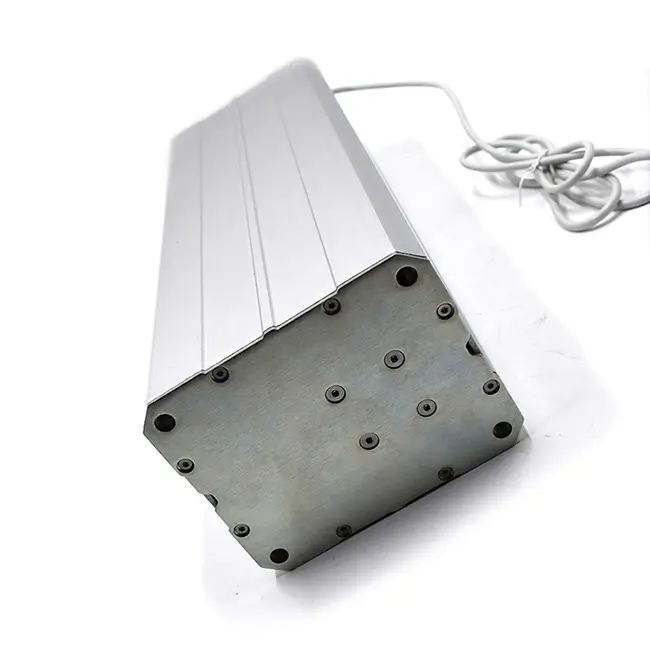

NKLC2-2 ifting Column is designed for vertical movement. It is widely used in hospital beds, dental chairs, norsing home beds , treatment chairs , couches , workstation, working table, operation table, obstetric table and other applications
With the Hall sensors built-in, it can be operated either as single column or several columns in synchronized movement by choosing a control box with micro-processor .
Features
1、 NKLC2-2 is designed for linear lifting column with one of 24VDC actuator inside
2、It is designed to provide vertical lift (only push) in where both need bending and torque force
4、There are two processed plates with four holes to fix
5、Anodised aluminium
6、Low noise
7、Max 6000N load force
8、Protection class: IP43
| Product name | NKLC2-2 lift column | ||
| Dynamic Load Push (N) | 6000 | 4000 | 2000 |
| Static Load Push* (N) | 6000 | 4000 | 2000 |
| Input(VDC) | 24 | ||
| Off-center load capacity | Max.1000N at 500mm lever arm length | ||
| Speed at Full Load (mm/s) | 3 | 4 | 9 |
| Stroke Length (mm) | 100~400 (option >400) | ||
| Colour | Silver | ||
| Mounting | By screws on the top and bottom plate | ||
| Overload Protection | Yes | ||
| Limit Switch | Build-in | ||
| Duty Cycle | 10%,max.2min. continuous use | ||
| IP Grade | IP54 | ||
| Operation Temperature | +5℃~ +40℃ | ||
| Optional Feature | Hall sensor option | ||
| Standard | CE | ||

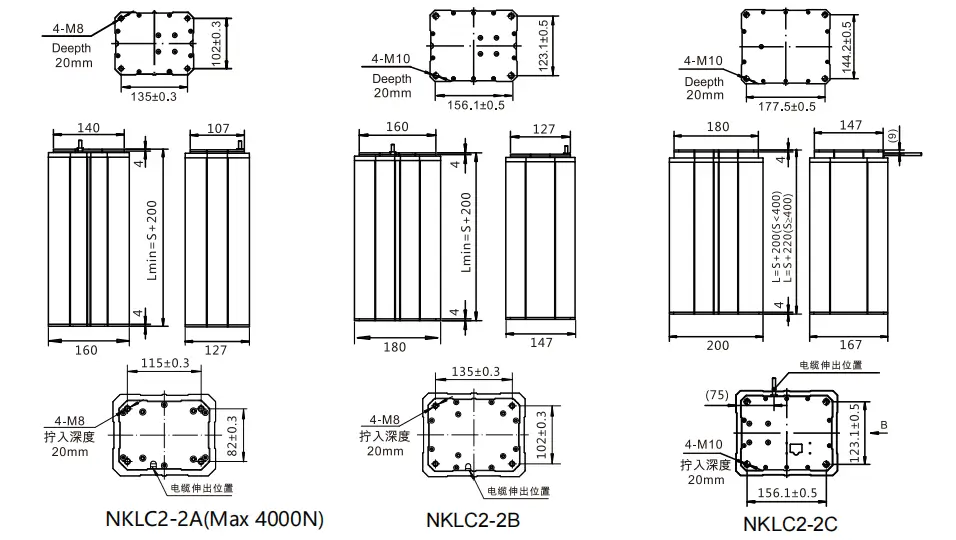

NKLC2-2 Dimensions
