Introduction

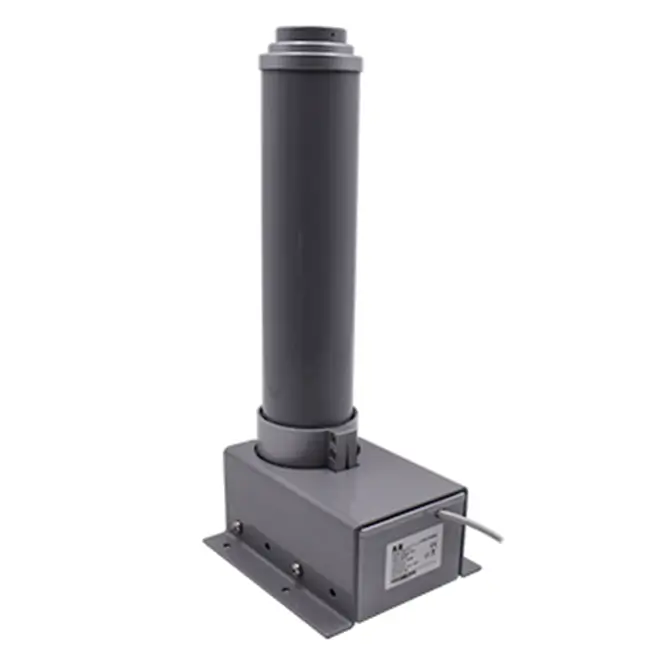

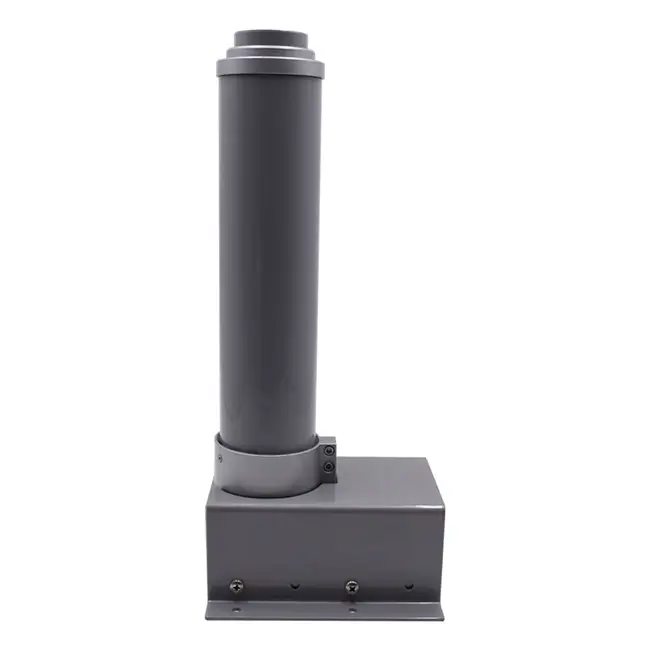

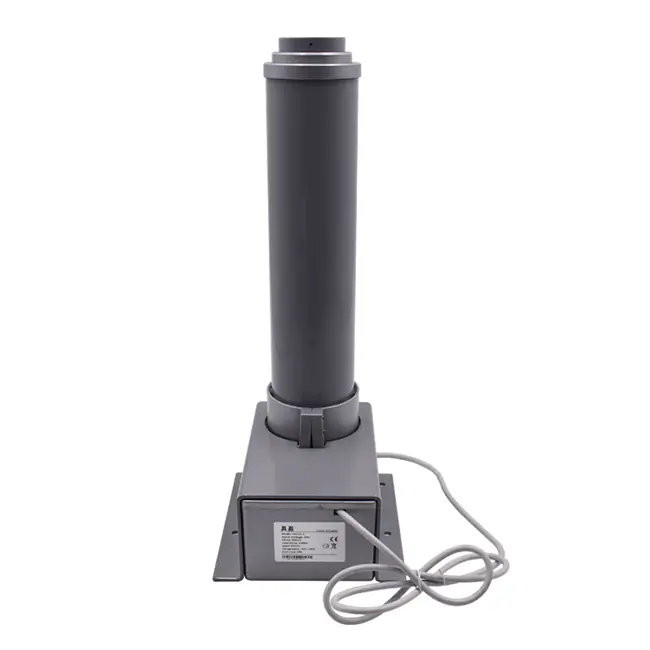

NKLC3-3 lifting column is designed for a wide range of workstation applications, like computer workstations, work benches, assembly desks, kitchens or tv lift .
3 segment columns have smaller installation dimensions and higher speed .
With the Hall sensors built-in, NKLC3-3 can be operated either as single column or several columns in synchronized movement by choosing a control box with micro-processor .
lifting columns provide height adjustment of modern home and office desks, use for a wide variety of workstations, as well as couches and tables in hospitals.
Features
Motor: 24VDC
Load in push: 1200N
Protection class: IP43
Colour:anodised aluminium
Built-in electrical limited switch-not adjustable
Noise level: 48dB
easy assembly
synchronized movement
| Product name | NKLC3-3 lift column |
| Dynamic Load Push(N) | 1200 |
| Static Load Push *(N) | 1200 |
| Input(VDC) | 12/24 |
| Off-center load capacity | Max.1000N at 500mm lever arm length |
| Speed at Full Load(mm/s) | 10 |
| Stroke Length(mm) | 100~400 (option >400) |
| Colour | Sliver |
| Mounting | By screws on the side directly or by holder(option) |
| Overload Protection | Yes |
| Limit Switch | Build-in |
| Duty Cycle | 10%,max.2min. continuous use |
| IP Grade | IP54 |
| Operation Temperature | +5℃~ +40℃ |
| Optional Feature | Hall sensor option |
| Standard | CE |

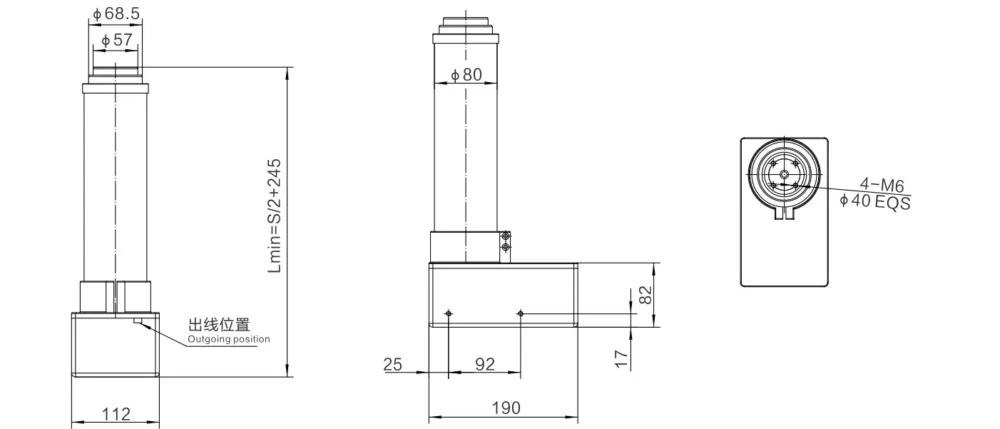

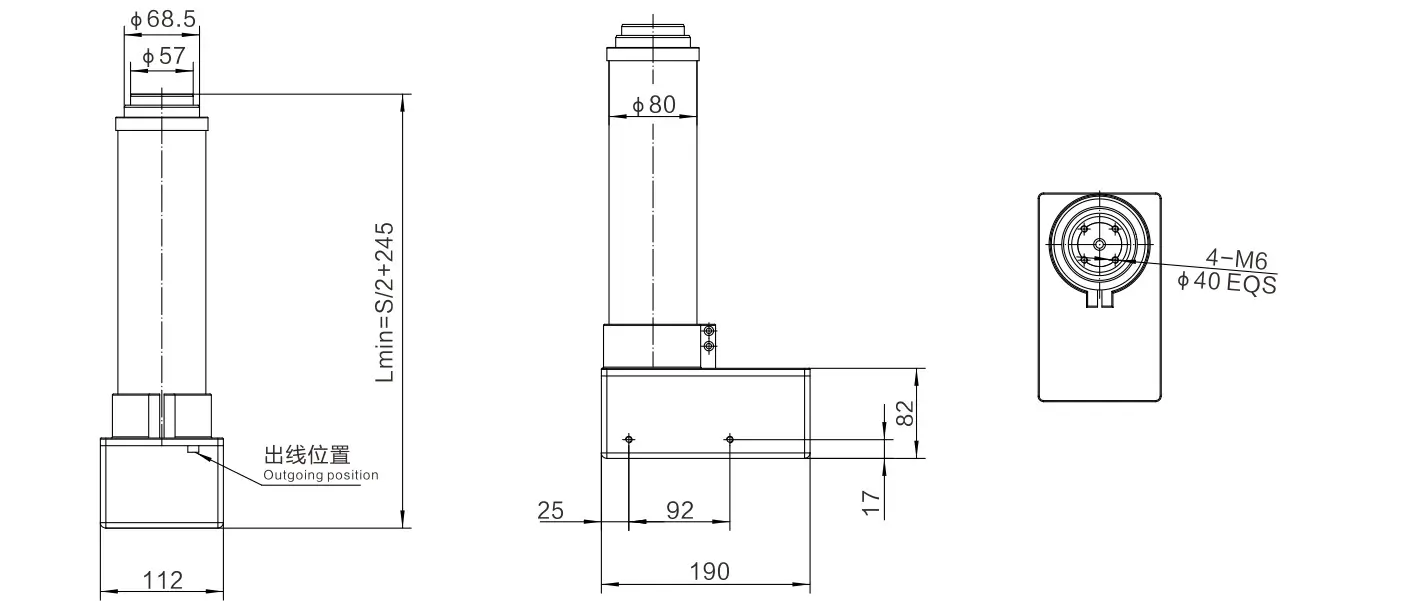

NKLC3-3 Dimensions
