NKHT23 Operator
24v solar electric actuators with mounting bracket
Introduction

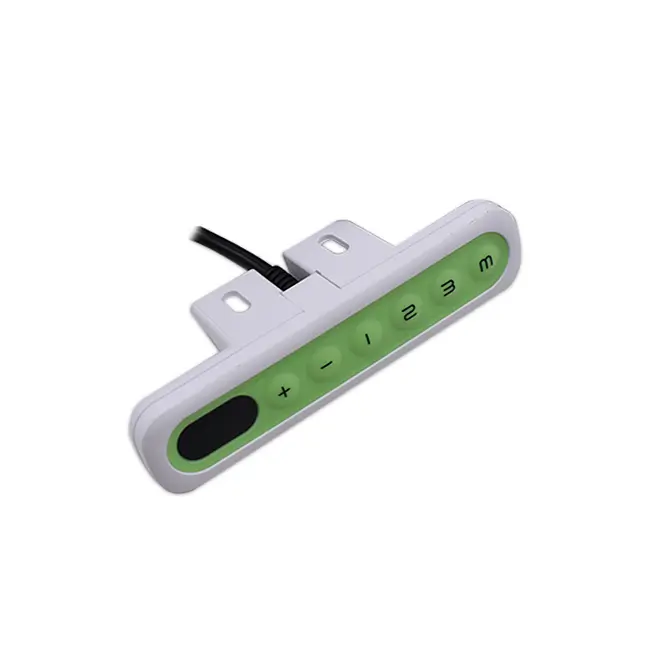

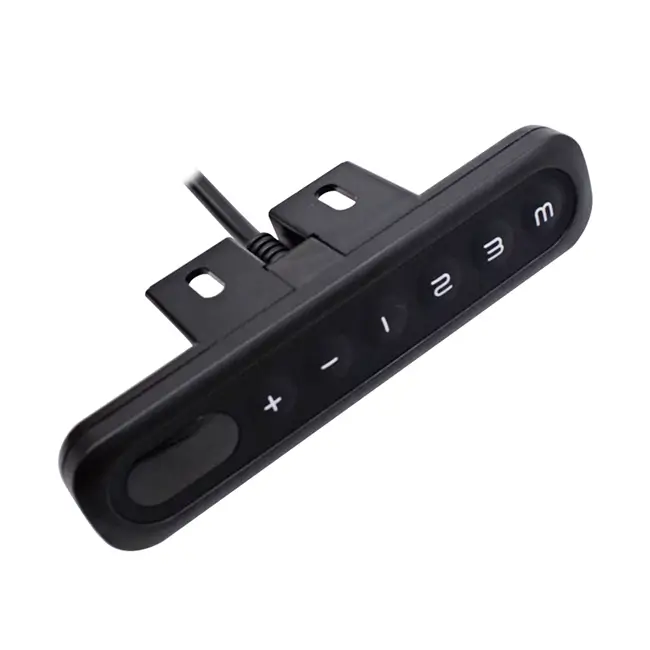

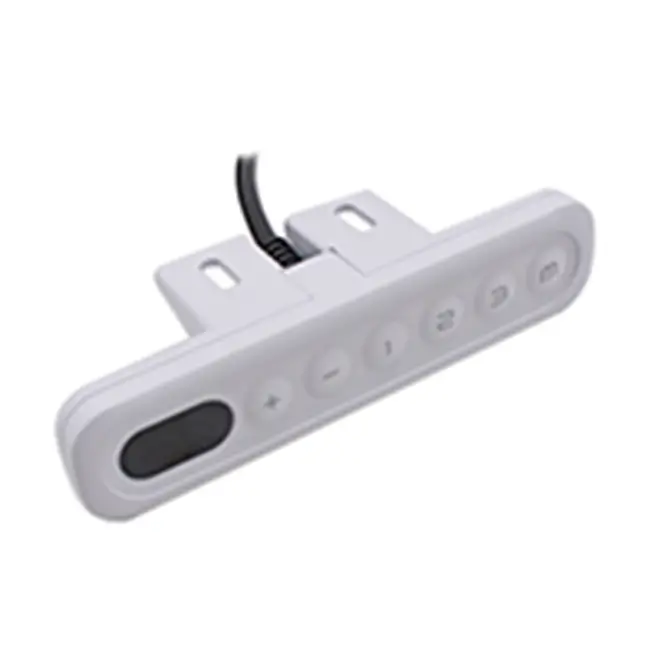

NKHT24 wired memory handset controller Operator is an innovative design handset with arc edge and
silica gel buttons for more comfortable touch feel, matching
with series of NAKIN NKCB11~14 control box to operate all
kinds of adjustable desk.
NKHT24 wired memory handset controller Operator can be installed in various
types of height adjustable desks, making easy use of pressing up & down button to control desk lifting. And it has 3 memory buttons to achieve one-key lifting. NKHT24 wired memory handset controller Operator can make free choice of different colors, front side of handset is waterproof to improve works safety.
Features
- Up/down drive
- LED displays actual height
- 3 memory buttons
- Silica gel buttons, waterproof front side
- Wire length: 2000mm with 8-core crystal plug
- Options: Customized logo; Color: (Panel: Black/White, Button: Black/White/Grey/Green).
- Compatible control box: NKCB11；NKCB12；NKCB13；NKCB14
- Operation Temperature: Indoors（+5℃~+40℃）
| Model | NKHT24 |
| Number of actuator | 1~4 |
| Plug and cable | Option |
| Color | Black or grey |
| Controller Matching | All of NAKIN control boxes |

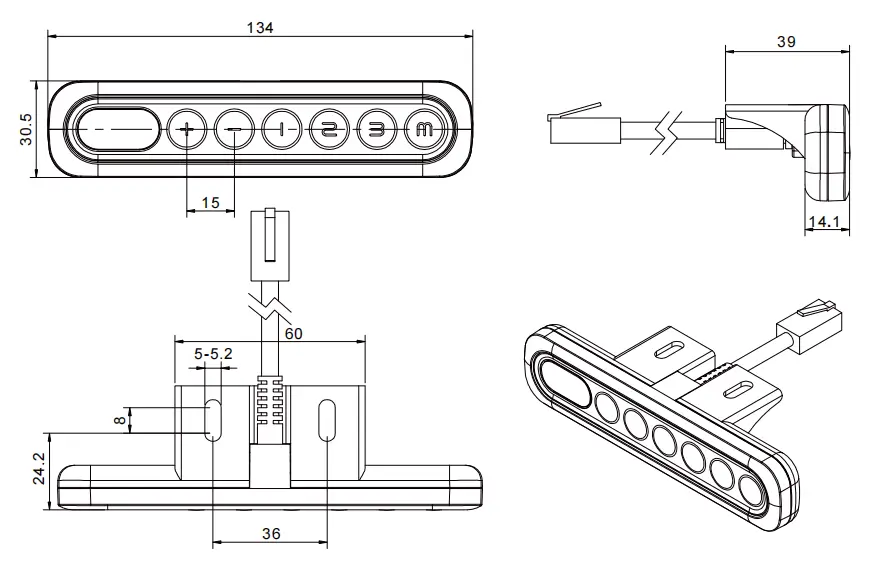

NKHT24 Dimensions
