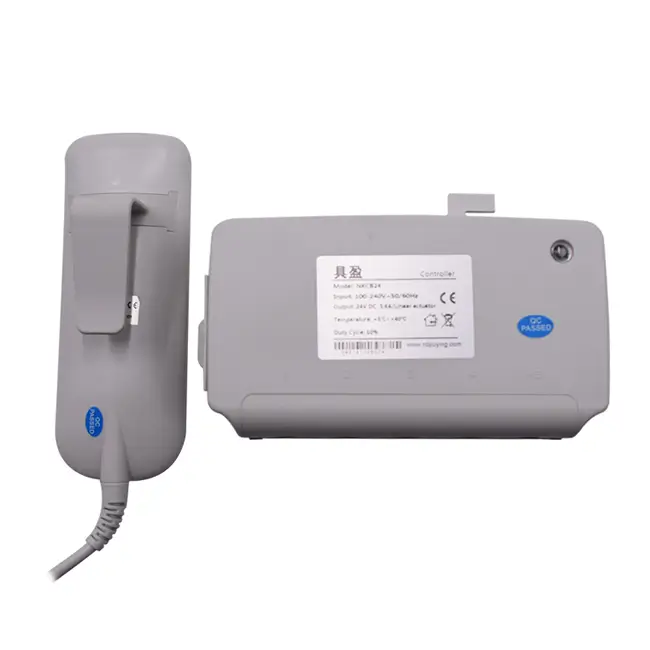

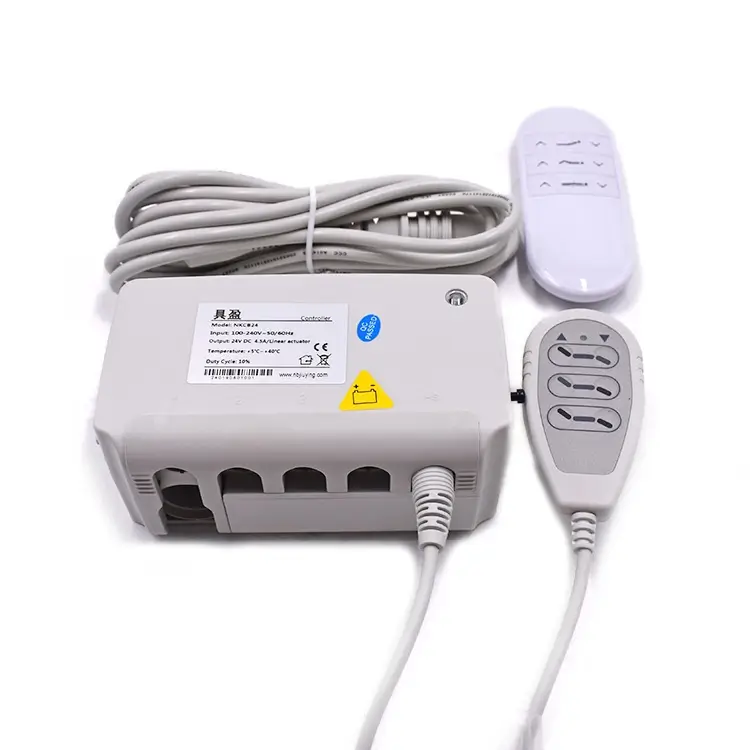

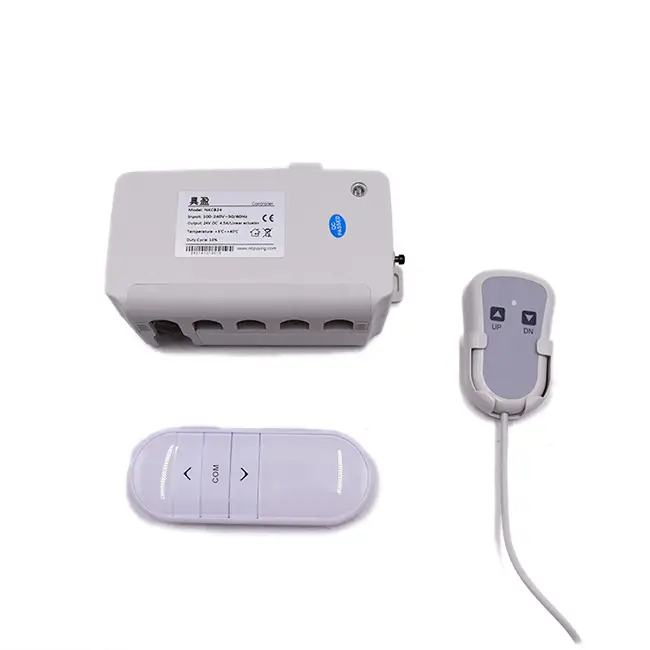

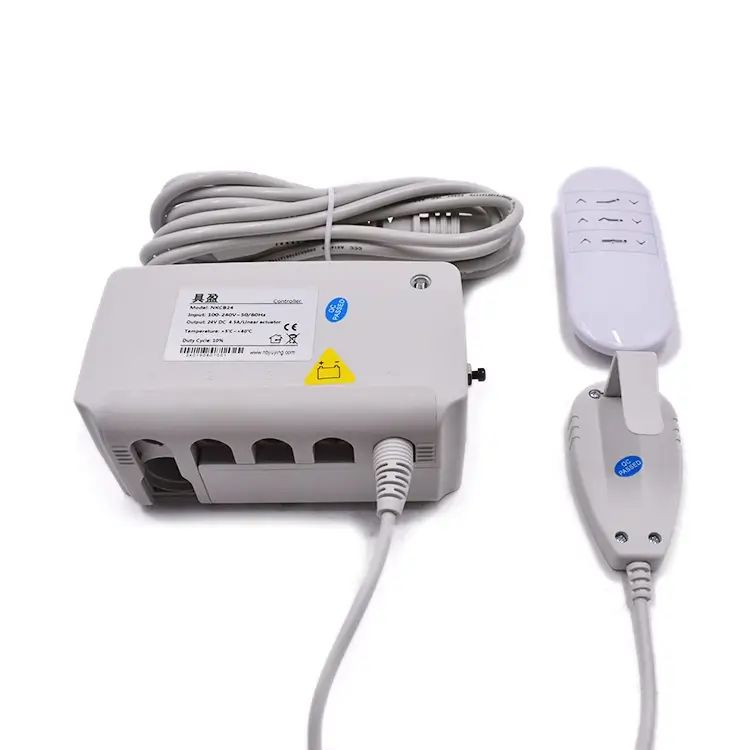

NKCB24 control box with wireless remote control
control box for linear actuators
Introduction
Control Boxes provide a plug and play method of controlling the our linear actuators. we manufacture high quality linear actuator systems and to support our products, we have a wide selection of control boxes for actuators and lifting columns
Features
- Power:input_100-240VAC, 50/60 Hz
- Transformer power: 50W / 100W can be optioned
- Power point light: Yes
- Actuator interface: Max. 4 channels, 4-pin actuator straight plug
- Handset interface: 1 channels, 9-pin actuator straight plug
- Battery interface: 1 channel, 6-pin actuator straight plug (output 30uA – actuator does not move)
- Standby power:Maximum 1W(230V)
- Color: gray/black
- Control idea: Relay, the service life exceeds 20000 cycles
- Duty cycle: 2/18 @ 25°C; on/off continuous use
- Actuator compatibility: General actuator
- Battery management: the power supply of the battery can be cut off at low voltage, and there is charge and discharge management inside the battery
- Safety system: Switching power supply thermal protection
- Over-current protection
- Position:Compatible with actuators equipped with special mounting connector; bed frame (via screws)
- Line card: all ports have
