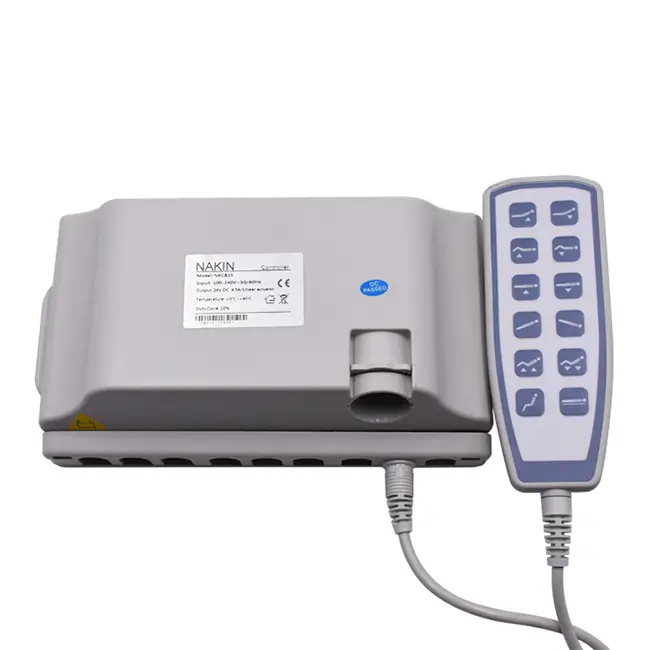

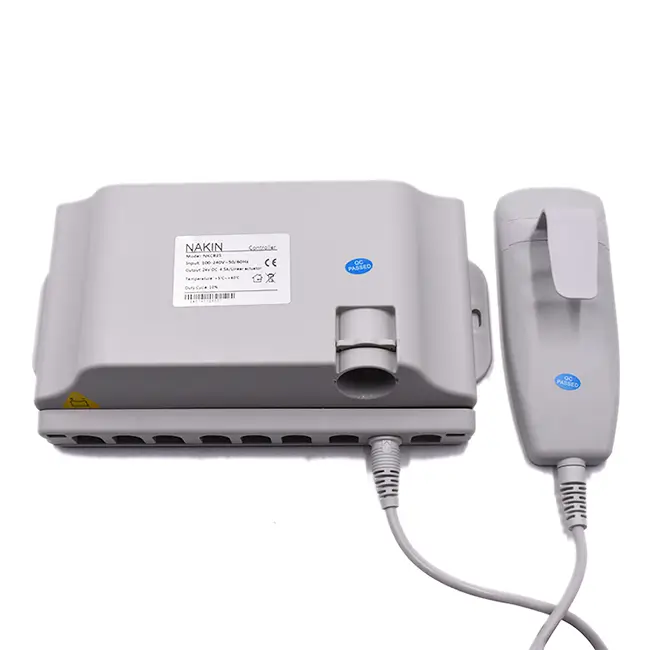

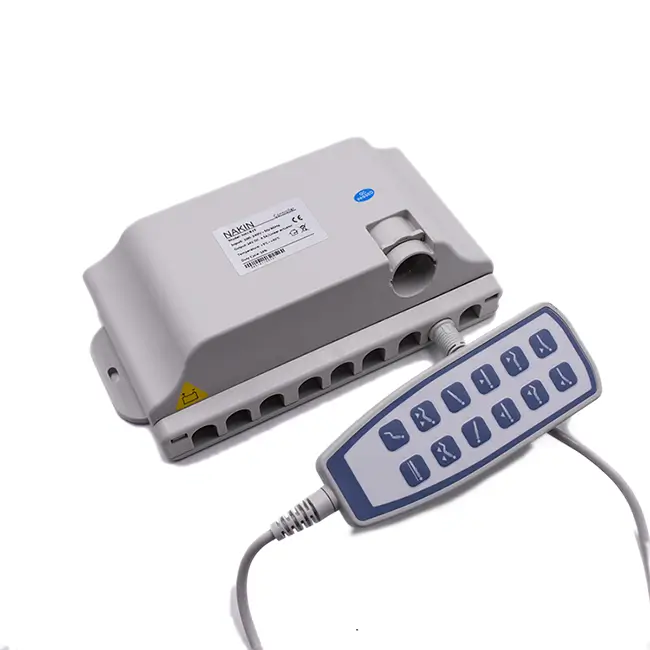

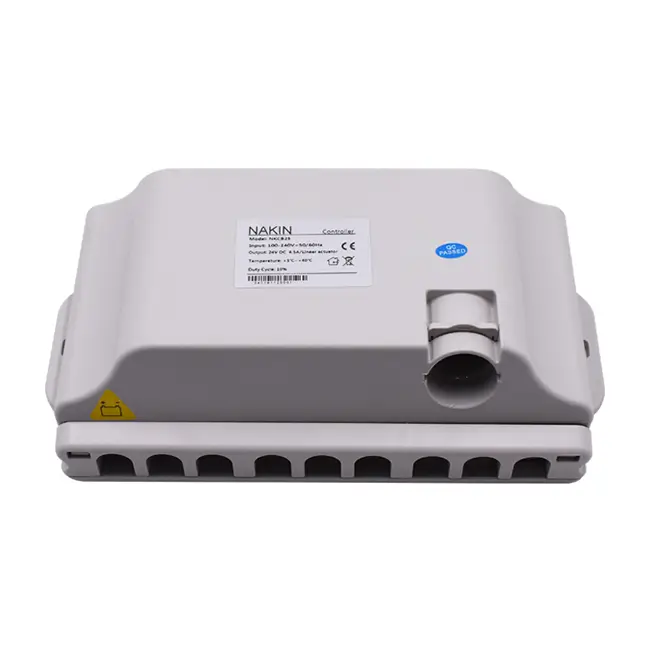

control box controller
Introduction
NKCB25 Controller application field 一 Medical Line Preferably in hospitals and nursing industry .
NKCB25 is equipped with a worldwide , performance 一 optimized SMPS ( switching power supply ) with a controller pert , five channels , battery pert .

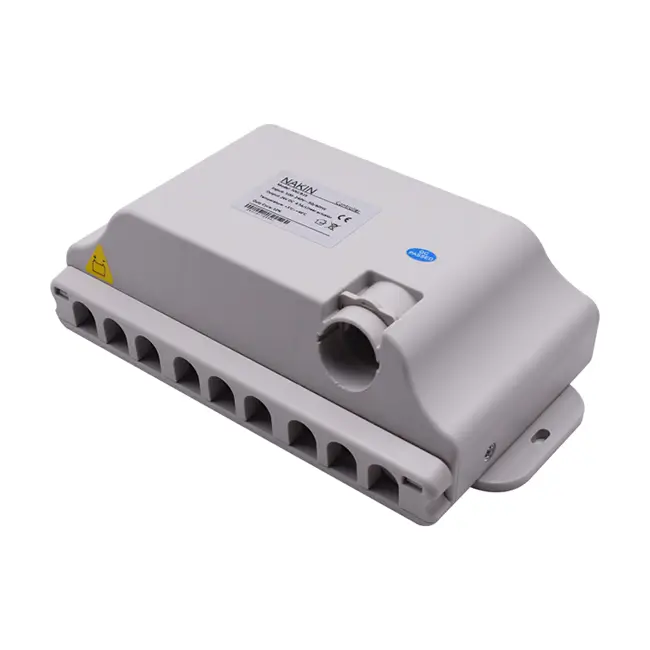

NKCB25 has elegant appearance and compact design . The fixing blocks on both sides of the lower shell can be locked on the platform by screws .
When the actuator in NKCB25 system reaches the limit switch , the motor power will be cut off by the signal switch in the control box rather than in the actuator .
Features
- Power: Input _ 100-240 VAC, 50/60 Hz; The output power is 200W in the rated state, and the output power is 320W in the working mode .
- Power point light: Yes
- Actuator interface: Max. 7 channels, 5-pin actuator straight plug
- Hand controller interface: 1 channels, 8-pin actuator straight plug
- Battery interface: 1 channels, 6-pin actuator straight plug
- Standby power : maximum 1W (230V)
- Color: gray
- Control idea: relay, service life exceeds 20000 cycles
- Duty cycle: 2/18min @ 25°C; On/off continuous use ( 320W at 25°C for 120 seconds)
- IP grade: Max. IPX6
- Operation: synchronous drive
- Single channel maximum current: 7 ± 0.5A
- Power management: voltage management ensures maximum power operation and limits maximum output power
- Safety system: thermal protection of switching power supply; over-current protection
- Installation: bedstead (by screws)
- Wire clip: all ports have.
